CNC Aluminum Prototyping Big Size Complex Design Tight Tolerance ± 0.1 Mm Quickly And Economically

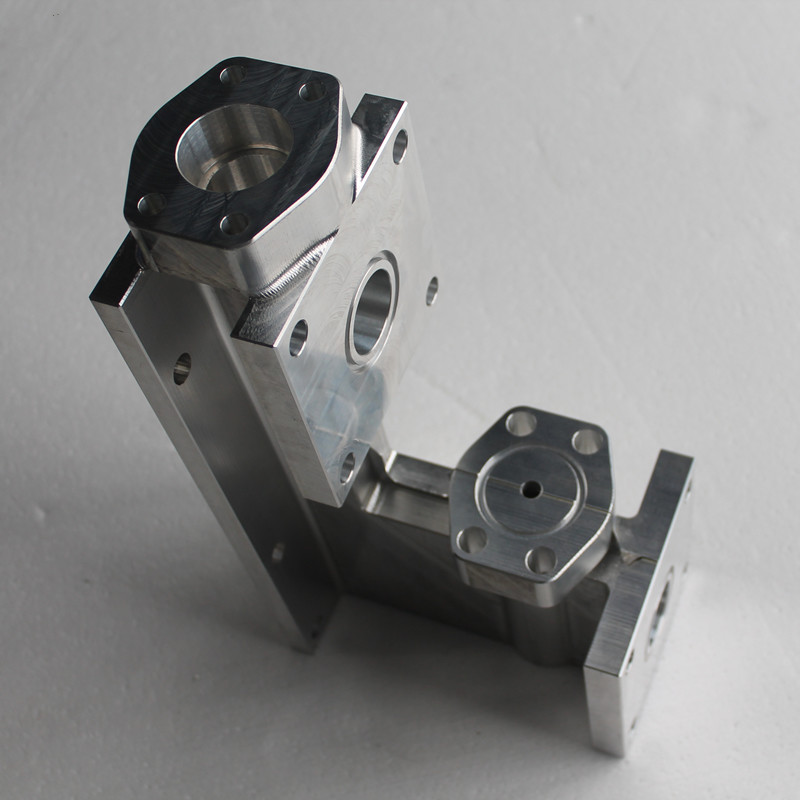

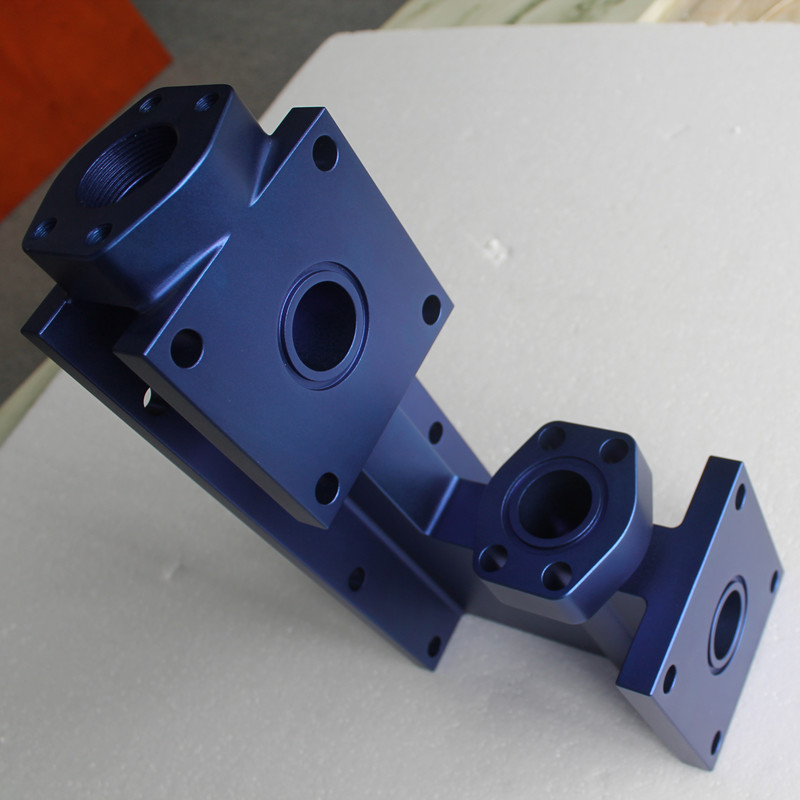

Customer was an Australia company offering professional service and engineered solutions for fluid systems. This prototype was made to test liquid pressure and fitting before low volume production. Since big dimensions, shape stability and milling tolerance were key points.

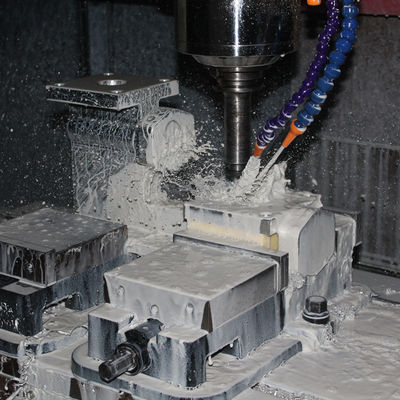

Precision CNC Milling is a type of conventional manufacturing technology that uses the high-speed rotating cutting tool to precisely remove the unwanted material from a solid workpiece. The cutting tool is usually held in a spindle and moving along multiple axes (3,4,5 axes) to create various structures, shapes and features. Here are some key features and advantages of CNC milling:
Good Versatility: CNC milling can work great with lots of solid materials, including metals, plastics, composites, and wood. It can also manufacture a variety of shapes, structures and features, from simple holes and small slots to complex contours and large curves.
Fully Automation: CNC milling machines can be fully automatic, this means it can work for a intended time without human intervention. This reduces the cost for manual labor and increases efficiency and productivity.
High Efficiency: CNC milling can manufacture parts accurately and quickly, which saves the time and cost of production. It can also produce complex parts in a single setup, that eliminates the need for multiple machines and many setups.
Compared with Additive Manufacturing (AM) technologies for Rapid Prototyping & Manufacturing, CNC Machining is a great choice for Rapid Prototypes manufacturing for its real and cheap raw materials, high precision, wide material and surface finishing options, usually economical manufacturing cost, and fast turnaround. Here are part of the benefits of CNC machined prototypes:
Real and Cheap Raw Materials. Compared with Additive Manufacturing (AM) technologies using expensive liquid or powdered materials with simulated properties, CNC machining uses the real and cheap solid materials to build the prototypes, so CNC machined prototypes work great for strength, flexibility and durability verification for product development.
Wide Surface Finishing Options. Due to material property features, AM technologies produced prototypes can not apply some surface finishing techniques for some materials, such as chrome plating finishing for AM ABS prototypes which will lead to deformation because of its weak high-temperature resistance.
Economical Production Cost. Material takes the majority of AM prototypes manufacturing cost, and AM technology simulated materials cost much much more than its relatively raw materials used by CNC machining, such as CNC ABS material costs round 3 USD per kilogram, and AM simulated ABS one costs round 500 USD per kilogram and even more some years ago, it is around 136 times higher than CNC one. So more material involved for the prototypes, more competitive price the CNC machining delivers.
Large Manufacturing Size. The maximum manufacturing dimensions (Length×Width×Height) of most AM technologies are under 1000×1000×1000 mm, particularly for metal prototypes manufacturing with more smaller ones. CNC machining provides more larger maximum manufacturing dimensions than AM technologies, manufacturing length over 2000 mm and width over 1000 mm is common for CNC machining.
CNC aluminum parts are widely used in many industries and applications in our daily life for its comprehensive performance and excellent practicability. Benefits of CNC machined aluminum parts:
Versatility: CNC machining works with a wide range of aluminum alloys, including series of 6061, 7075, and 2024, etc. It can also produce different kinds of shapes and features with great dimension stability, from simple holes and small slots to complex contours and large structures.
Precision: Aluminum alloy is a soft and malleable metal material, which makes it easy to be machined with high precision and tight tolerances, usually from ± 0.01 mm to ± 0.1 mm, so CNC machined aluminum parts have high repeatability and consistency, which is important for industries requiring high uniformity.
Lightweight: Aluminum is a lightweight metal material with normal density 2.7 g/cm3, which makes it ideal for industries and applications that require weight reduction, such as aerospace and automotive industries.
Corrosion Resistance: Aluminum alloy has excellent corrosion resistance, which makes it suitable for outdoor and marine applications that require high corrosion resistance capability.
